| Additional Information | |
|---|---|
| Quick Find | ZX43883 |
| Stock Ref | NCF3018VC3 |
| Category | Cylindrical Roller Bearing |
| Description | NCF3018 V-C3: Cylindrical Roller Bearing |
| Weight | 2.0500 Kg |
| Int Ref | 3/200/312/0/10155316 |
| Bore | Cylindrical bore |
| Clearance | Slightly increased radial clearance |
| Design | Support bearing (axial displacement) |
| EAN | 9008745709845 |
| Outer Ring | Without groove/lubrication holes |
| Temp Range | -30 to +150 °C |
| Current Insulation | No current insulation |
| Roller Rows | Single row bearing |

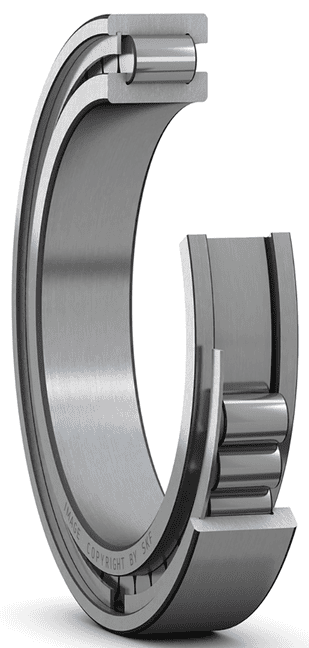

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
