2 in stock
| Additional Information | |
|---|---|
| Quick Find | ZX45799 |
| Stock Ref | NNU 4952 BK/SPW33 |
| Category | Cylindrical Roller Bearing |
| Description | NNU4952 BK/SPW33: High / Super-Precision Bearing / / Cylindrical Roller Bearings, Double Row, High-Precision, OEM: 14753 |
| Weight | 30.4400 Kg |
| Int Ref | 3/200/312/0/10088383 |
| Bore | 12) |
| Cage | Brass cage |
| Clearance | Greatly reduced radial internal clearance |
| Outer Ring | Lubrication groove with lubrication holes on outer ring |
| Temp Range | -30 to +150 °C |
| Current Insulation | No current insulation |
| Roller Rows | Double row bearing |

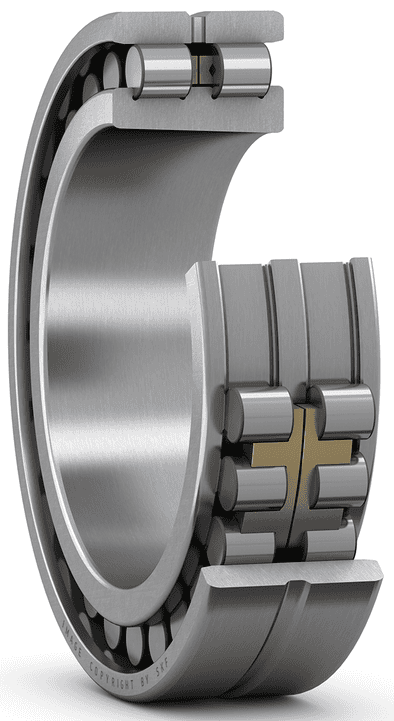

Super-precision double row cylindrical roller bearings in the NNU 49 series are designed to accommodate heavy radial loads and high speeds, while providing a high degree of stiffness. Having three flanges on the outer ring and no flanges on the inner ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.
